Characteristics and Features
When programmed ON, an airflow alarm warns of deviations from normal velocities.
Automated reduced flow mode for enhanced energy efficiency.
Negative pressure side wall plenums.
Reduced noise level is designed to enhance user focus.
Prefilter extends the HEPA filter life and is easily changed by hand without the need of tools.
UV disinfection (optional) --A UV disinfection light can be fitted into the top of the work space to disinfect the worktop.
Provides a laminar flow of HEPA-filtered air to meet the most critical contamination requirements.
Incorporates industry-leading quiet, low-vibration fan/ filter modules.
Advantages
Quiet airflow design offers noticeably reduced noise level.
SUS304 interior for enhanced resistance to corrosion.
Solid plenums for long life and lasting containment Negative-pressure, dual side walls protect from leaks to the exterior environment.

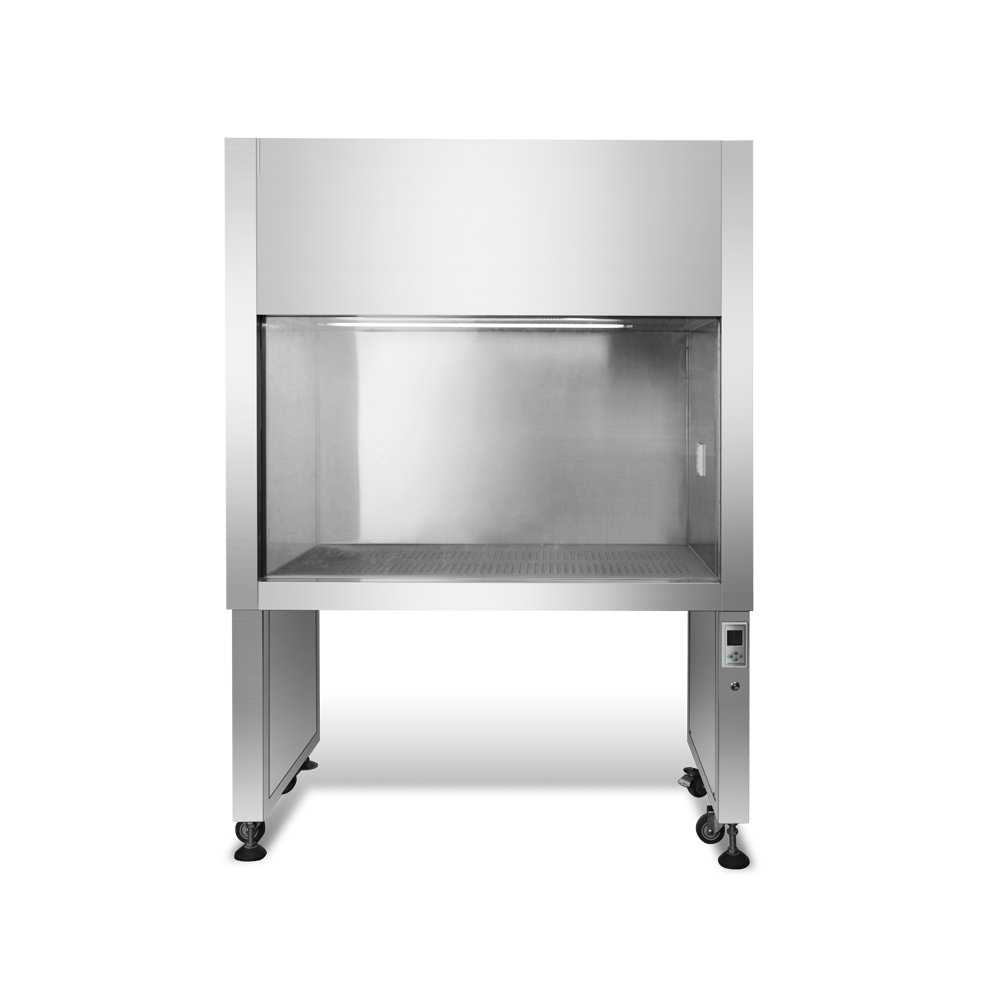

Product schematic diagram
standard size and parameters
Model | Outer Size
W×D×H | Inner Size
W×D×H | Cleanliness
Class | Rated Wind
Speed
（m/s） | HEPA Size
L×W×D | Types |
LVCW09-081070 | 970×770×1800 | 810×700×550 | Class A | 0.45±20% | 720×610×93×1 | Single Side Vertical Air Supply |
LVCW15-130070 | 1460×770×1800 | 1300×700×550 | 590×610×93×2 | Double Sides Vertical Air Supply |
LVCW06-082048 | 900×700×1450
| 820×480×600 | 650×540×93×1 | Single Side Horizontal Air Supply |
LVCW13-168048 | 1760×700×1450 | 1680×480×600 | 740×540×93×2 | Double Sides Horizontal Air Supply |
Note: specifications listed in below table are only for customers' reference. It is mostly designed and manufactured according to customers' URS.
