Material of Filter Cartridge components

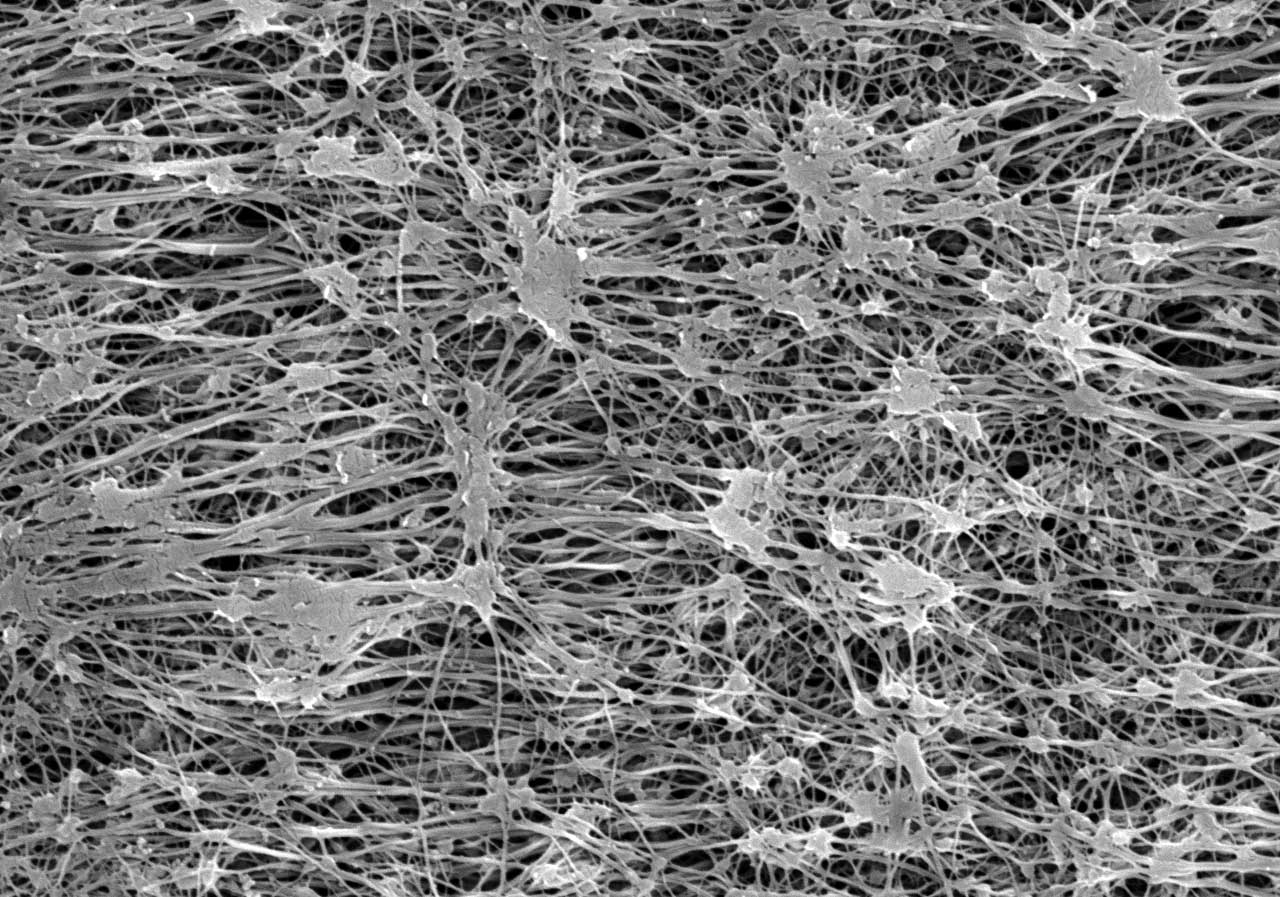

Filter membrane: PTFE
Support/Drainage: PFA/ECTFE
Core/Cover/End cover/End caps: PFA
Sealed leads/Fins: 222, 226PFA
O-rings: Encapsulated fluoroelastomer, Perfluorinated flat gasket
Characteristics and Features
Excellent high-temp resistance and extensive chemical compatibility.
Perfluoropolymer structure is suitable for filtration of various polar strong acids and bases.
Double membrane structure, absolute bacterial retention rate.
The samples of filter cartridges successfully passed the bacterial retention testing required by regulations, LRV>7. Integrity can be maintained after repeated high-pressure disinfection.
All the compositions meet the requirements of the biological testing characteristics of USP Class 6 plastic products at 121°C and the food contact materials listed in the relevant regulations of Chapter 21 of the Federal Regulations of the United States (CFR).
It is manufactured under ISO 9001 and ISO 14001 systems and Class 100 clean environment.
Production and usage are traceable.
Technical Specifications and Operating Parameters
Size | Diameter: 2.75" (69 mm) Length: 10", 20", 30", 40" etc. |
Removal Ratings (µm) | 0.1, 0.22, 0.45 |
Filtration Area | 0.7m2 /Ø68-10" |
Dissolution per 10" filter | <30mg |
Maximum Continuous Operating Temperature | 170°C |
Maximum Differential Pressure | 0.4MPa/50℃ 0.15MPa/170℃ |
Endotoxin | <0.25EU/ml |
Typical Application
Ozone resistant filtration of bottled drinking water
Filtration of high temperature and highly corrosive chemicals in semiconductor manufacturing process
Filtration of various acids, alkalis, organic solvents and other chemicals
Filtration of etching, cleaning, photoresist, developer and other strong oxidizing liquid
Adapter Style
Ordering information
1 | 2 |
| 3 | 4 | 5 | 6 | 7 |
PFA | 0.22 | --- | 10 | A | S | P | --X |
1 |
Membrane
|
PTFE
|
2 |
Pore size
|
0.1 / 0.22 / 0.45 μm
|
3 |
Length
|
10” / 20” / 30” / 40”
|
4 |
Connector/End Cover A/AA/B/BB/C/CC/D/E/EE/F
|
Spear+222 Spear+222adapter with encapsulated reinforcing stainless steel ring Flat+222 Flat+222adapter with encapsulated reinforcing stainless steel ring Spear+226 Spear+226adapter with encapsulated reinforcing stainless steel ring Flat+Flat Flat+226 Flat+226adapter with encapsulated reinforcing stainless steel ring Flat+215 Spear+3 Flange Bayonet adapter
|
5 |
Gasket Material S, E, F, FF
|
S: Silicon rubber E: EPDM rubber F: Fluorine rubber FF: Encapsulated fluoroelastomer
|
6 |
Application
|
Pharmaceutical grade for bio-pharmaceutical&food and beverage industry
|
7 |
Special Specification Remarks
|
Standard Specification Default
|
