Clean room door 丨Color steel plate series

In recent years, LENGE PURIFICATION has launched a variety of products such as clean doors and Windows and color steel plate to meet more needs of the market.

LENGE purification specializes in purification and filtration equipment manufacturing more than 20 years, is a collection of research and development, production, sales, testing as one of the high-tech enterprises. In recent years, LENGE PURIFICATION has launched a variety of products such as clean doors and Windows and color steel plate to meet more needs of the market.

Clean room door

Supporting all levels of clean rooms, purification rooms, dust-free rooms, activity rooms and color steel plate partition places. The main products include steel clean doors, stainless steel clean doors, etc.

Steel clean door

Window

Material: 5mm tempered glass

Type: outside square inside square (conventional), outside square inside circle, outside circle inside circle

Interior: spray interior (conventional), stainless steel interior

Screen printing: white silk-creen printing, silk-creen printing

Lock

Material: stainless steel

Type: pipe handle split lock (conventional), elbow press lock

Optional: manage key cylinder

Door frame

Material: 1.5mm galvanized sheet

Structures: flat frame type, wrapped frame type

Common thickness: 50mm, 100mm

Spraying: polyester powder spraying (conventional), antistatic polyester powder spraying, fluorocarbon spraying

Color: white gray, blue and other colors

Door plank

Material: 0.8mm galvanized sheet (conventional), 1.0mm galvanized sheet

Sandwich material: paper honeycomb, aluminum honeycomb, rock wool, polyurethane (not commonly used)

Thickness: 50mm

Spraying: polyester powder spraying (conventional), antistatic polyester powder spraying, fluorocarbon spraying

Color: white gray, blue and other colors

Hinge

Material: stainless steel

Type: detachable hinge (conventional), semi hidden hinge, three-dimensional hinge (fully hidden)

Lifting sweeping strip

This accessory is optional or not

Stainless steel clean door

Window

Material: 5mm tempered glass

Type: outside square inside square (conventional), outside square inside circle, outside circle inside circle

Interior: spray interior (conventional), stainless steel interior

Screen printing: white silk-creen printing, silk-creen printing

Lock

Material: stainless steel

Type: pipe handle split lock (conventional), elbow press lock, push rod lock

Optional: manage key cylinder

Door frame

Material: 1.5mm brushed stainless steel

Structures: flat frame type, wrapped frame type

Common thickness: 50mm, 100mm

Color: natural stainless steel

Door plank

Material: 1.0mm brushed stainless steel (conventional), 0.8mm brushed stainless steel

Sandwich material: paper honeycomb, aluminum honeycomb, rock wool, polyurethane (not commonly used)

Thickness: 50mm

Color: natural stainless steel

Hinge

Material: stainless steel

Type: detachable hinge (conventional), semi hidden hinge, three-dimensional hinge (fully hidden)

Lifting sweeping strip

This accessory is optional or not

Detailed structure display

Flat frame construction

Enveloped frame structure

Windows structure

Split lock

Elbow pressure lock

Push rod lock

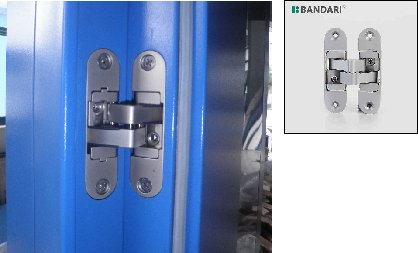

Fully concealed hinge

Semi-concealed hinge

Detachable hinge

Exposed door closers

Concealed door closer

Clean window series

Supporting all levels of clean rooms, purification rooms, dust-free rooms, activity rooms and color steel plate partition places, the main products include single glazed clean Windows, hollow glass clean window and so on.

Single glazed clean Window

Window frame

Material: aluminum alloy frame

Structure: wrapped frame type

Common thickness: 50mm, 100mm

Color: spraying white ash, electrophoresis (sand electric white)

Glass

5mm / 6mm tempered glass, acrylic glass, fireproof glass, etc

Detailed structure drawing

Double glazed clean window

Window frame

Material: aluminum alloy frame

Structure: flat frame type, wrapped frame type

Common thickness: 50mm, 100mm

Color: white, black

Glass

5mm/6mm/8mm toughened glass, acrylic glass, fireproof glass, etc

Flat frame structure

Wrapped frame structure

Color steel plate series

LENGE purification color steel plate series mainly include ordinary polyester (PE), anti VHP plate, fluorocarbon coating (PVDF) and other specifications.

In order to fundamentally improve the product quality, a number of color steel plate automatic production lines have been laid at LENGE PURIFICATION, which can meet the processing and production of high-quality and large-scale purified color steel plate from manual plate forming to glue spraying, plywood, hot pressing and stacking.

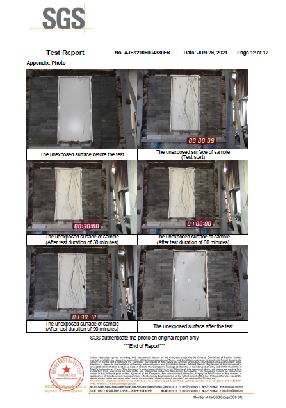

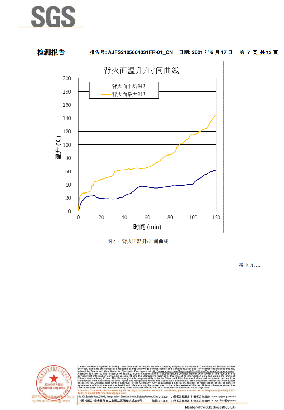

For the continuous pursuit of product quality, LENGE PURIFICATION has set up a professional independent testing laboratory, with a variety of testing equipment such as tensile testing machine, constant temperature and humidity oven, oven and color difference instrument, and issue professional testing reports to ensure the quality of ex factory products.
